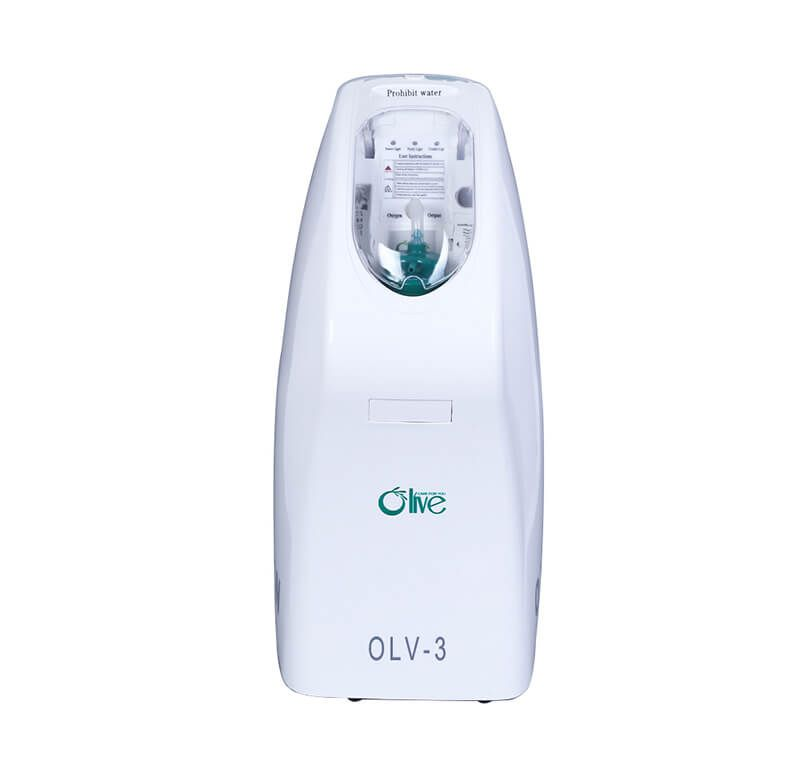

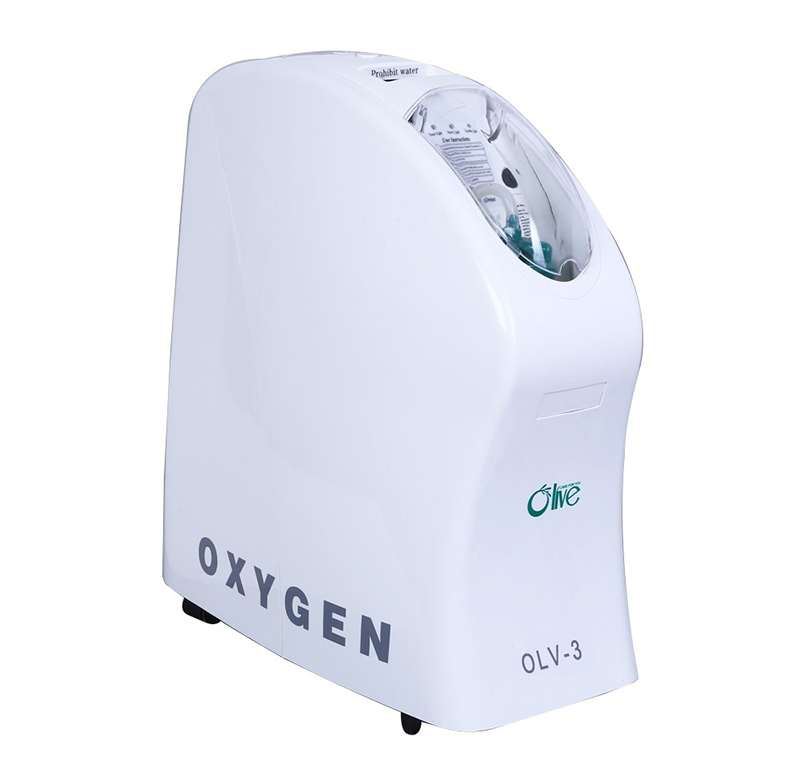

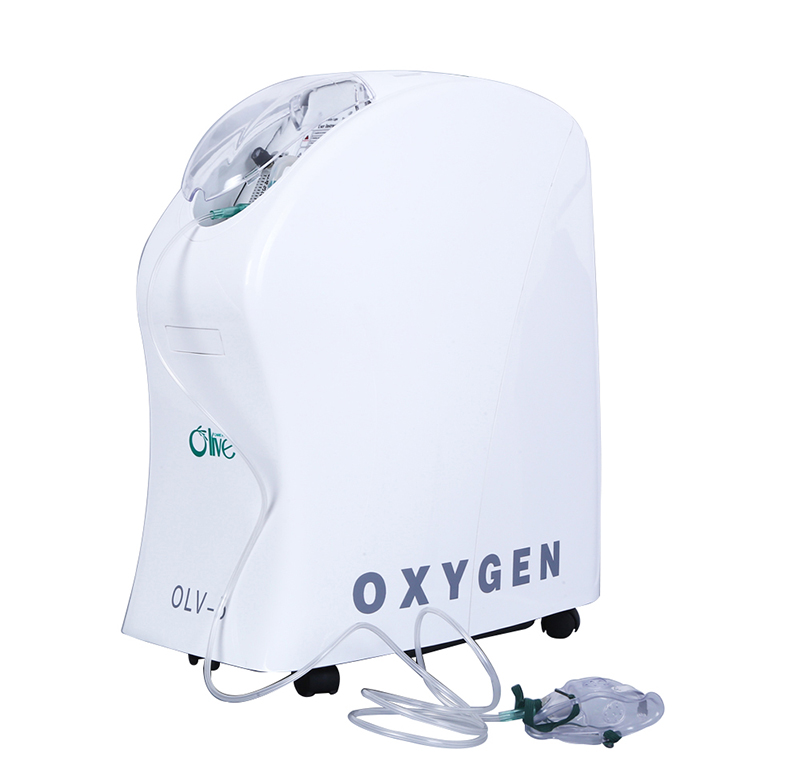

OLV-3 96% Purity 3 LPM Oxygen Concentrator

Model Number: OLV-3

Product highlight: Help to avoid surgery by giving a simpler way of rehabilitation.

Product features: Long life time, high purity oxygen, low power consumption, intelligentialize

Application: For Commercial & Home Use, Hospital and home medical care.

OLV-3 96% Purity 3 LPM Super Quiet Medical Oxygen Concentrator can supply stable oxygen at 93%±3% for 24 Hours/7 Days/365 Days continuously operational and help the treatment of cardiovascular and cerebrovascular diseases, respiratory diseases, chronic obstructive pneumonia etc.

For business OEM/ODM bulk sales service, please inquire us right now.

Inquire Now

Product Introduction
Product Advantages
O2 Concentrator vs Oxygen Tanks
Applications

Working principle of high concentration oxygen concentrator

The air compressor removes oil, dust and other solid impurities and most of the gaseous water through the pretreatment system, and enters the adsorption tower equipped with molecular sieve. The nitrogen, carbon dioxide, and water vapor in the air are adsorbed, and the cycle cycle of decompression and desorption, Make compressed air alternately enter the adsorption tower to achieve separation, thereby continuously producing high-concentration oxygen

Product parameter

OLV-3 96% Purity 3 LPM Oxygen Concentrator
Model	OLV-3
Oxygen flow	1-3L/min
Oxygen concentration	≥93%±3%
Voltage	AC220V±22V, 50Hz±1Hz/AC110V±15V, 60Hz±1Hz
Output pressure	20Kpa-60Kpa
Input Power	260W
Sound level	Less than 45 db
Net Weight	19KG
Dimension(MM)	490x270x560
Working System	Continuous flow
Atomization quantity	>0.15ml/min(Only modes with atomization function)

Feature

1. High oxygen purity 93%+-3%: Adopt PSA technology, produced oxygen meets the medical standard

2. Intelligentialize Automatic alarm: More intelligent more safe

3. Long Life Time: Adopt France import CECA molecular, long life time about 10000 hours

4. Low power consumption: One hour just consumes 0.3Kw

5. Low sound level: Less than 40db(A)

6. Suitable for 24/7 use, 2 years warranty

48 Hours

Continuous Operation

Low Noise

Less Than 45 dB

90-96%

High Oxygen Concentration

1-3L

Oxygen Flow Adjustment

Request a quote

Annual sales of 80000 units

Olive has been focusing on the production and research and development of medical oxygen concentrators for a long time, and has continuously broken through the key areas of oxygen concentrators and obtained a number of patents and domestic and foreign recognitions.
